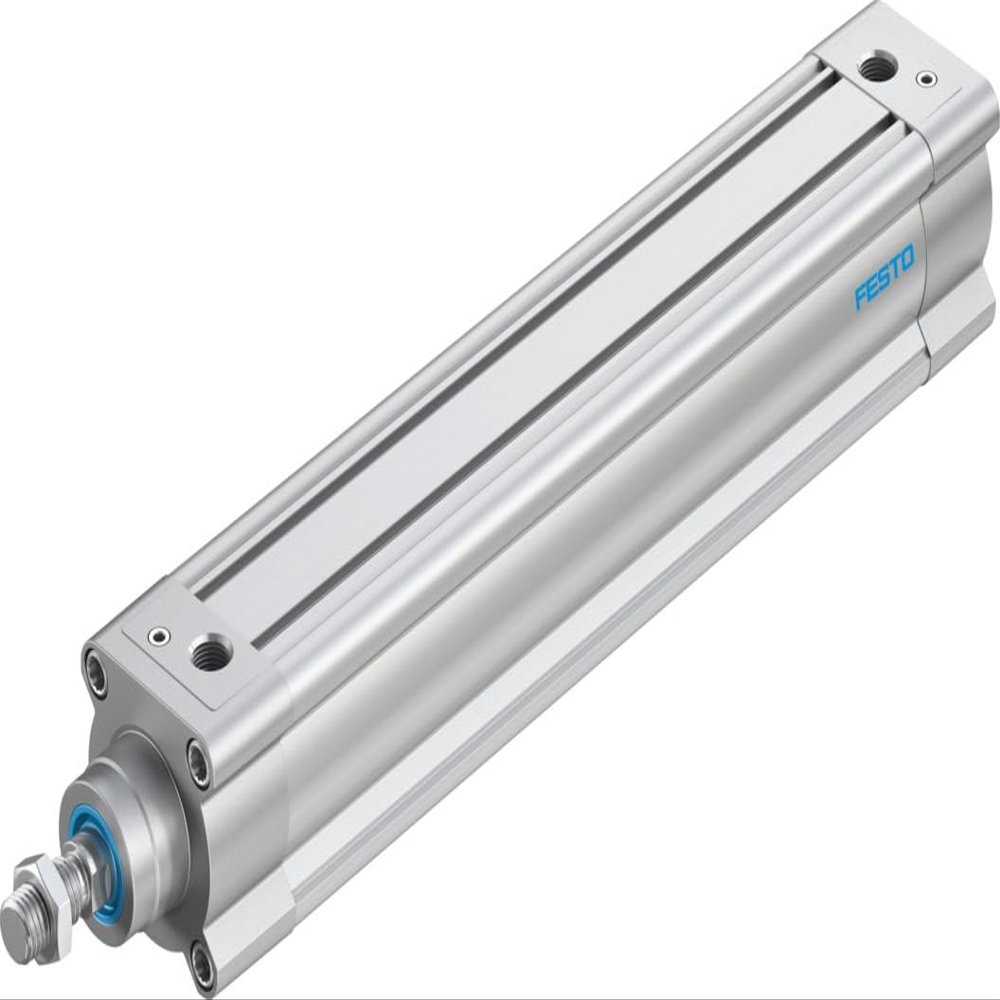

DSBC-63-320-PPVA-N3 (1383587) Standard Cylinder, 63 mm Bore, M16x1.5 Rod Thread

Description

• Festo original profile-tube cylinder
• ISO 15552 standard cylinder
• Double-acting pneumatic cylinder
• 320 mm stroke
• 63 mm piston diameter
• M16x1.5 male piston-rod thread
• PPV adjustable pneumatic cushioning on both sides
• Single-sided piston rod
• For proximity switches
• Operating pressure: 0.4 to 12 bar
• Pneumatic connection: G3/8
• ATEX cylinder

Stroke: 320 mm Piston diameter: 63 mm Piston-rod thread: M16x1.5 Cushioning: PPV, adjustable pneumatic cushioning on both sides Mounting position: Any Standard compliance: ISO 15552 Piston-rod end: Male thread Design: Piston, piston rod, profile tube Position sensing: For proximity switches Version: Single-sided piston rod Operating pressure: 0.4 to 12 bar Mode of operation: Double-acting Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4] Note on the operating and control medium: Oiled operation possible; required during continued operation Corrosion resistance class KBK: 2, moderate corrosion stress Ambient temperature: -20 to 80 C Impact energy at the end positions: 1.3 J Cushioning length: 22 mm Theoretical force at 6 bar, retracting: 1,682 N Theoretical force at 6 bar, extending: 1,870 N Moving mass at 0 mm stroke: 430 g Additional weight per 10 mm stroke: 62 g Base weight at 0 mm stroke: 1,740 g Additional moving mass per 10 mm stroke: 25 g Mounting type: With internal thread; accessories available optionally Pneumatic connection: G3/8 Material note: RoHS compliant Cover material: Coated die-cast aluminum Seal material: TPE-U (PU) Piston-rod material: High-alloy steel Cylinder-tube material: Wrought aluminum alloy, hard-anodized Symbol: 991235
